Smart TV Apps

The CONNECT Player Web HTML5 SDK supports LG (webOS) and Samsung (Tizen) Smart TV platforms from 2017 model year onwards when accessed via an Application built for the respective platforms enclosing the  Web App implementation.

Although platforms also support Native Apps, it is out of scope here.

You can design, build, install and debug applications for these platforms with the Integrated Development Environment (IDE), SDKs and supporting tools.

https://webostv.developer.lge.com/ LG WebOS TV IDE/SDK

https://developer.tizen.org/ Tizen Studio IDE/SDK


Both IDEs included support for Emulated devices to develop and test Apps across a wider set of devices and models than you physically have access to.

Apps

There are two different App design approaches to bring the CONNECT Player SDK to end-user's TV to enable playback of content:

  • Player SDK and components hosted on your website

  • Player SDK and components embedded into the payload of the App

Take the following into consideration when selecting the preferred approach.


Hosted SDK

Payloaded SDK

Benefits

Reuse of same hosted location as Browser solution.

Minimal size of Smart TV app size.

Increased security in this closed environment.

Risks

Potential increased risk of hacker exposure.

Enlarged app size:

  • Platform size limitation being reached

  • Longer installation time

App build/deploy/store approval update overheads when components change.

NAGRA has developed example code for both styles, described below.  The payloaded example includes the dasWebSDK.js component to demonstrate whatever is needed of the App can be included.

Store listings

Both platforms have their own content stores whereby end-users can initially download and subsequently obtain updates.  The procedure is similar to creating listings in other stores like Google Play for Android, the Apple AppStore or the Google Chrome Webstore. It involves creating an account, uploading the binary file of your app and supplementing it with metadata to tailor how your listing appears in the store as well as evidence supporting your application.  Once submitted, the application must pass a QA review process before approval for the listing is granted.

Full details on how to prepare store listings are out of scope.  However, you can learn more about the submission process at the following sites:

App Structure

There are common elements within the two platforms' app structures:

  • config and metadata files

  • index.html

  • CSS files

  • files and folders of any required payload

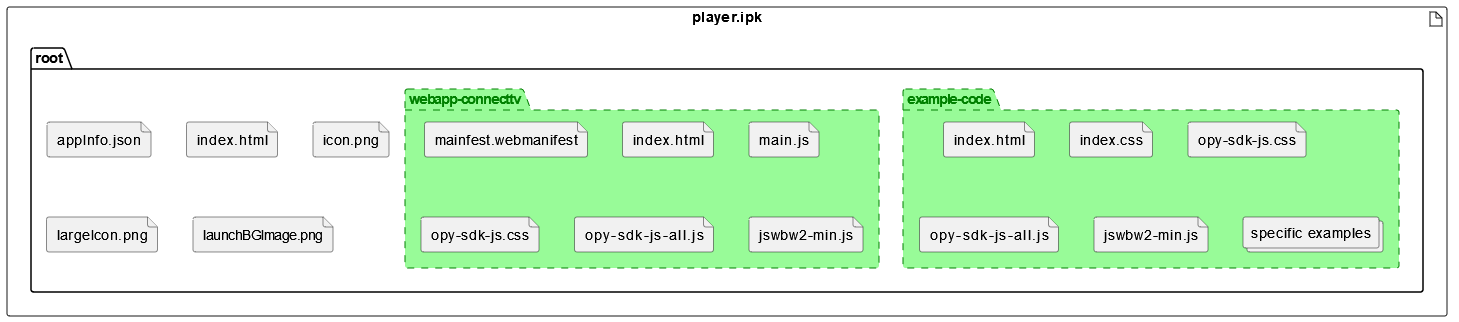

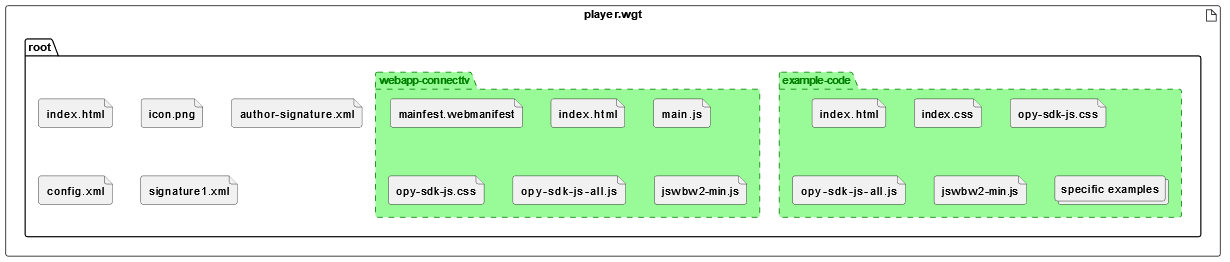

A payloaded App's contents look very similar to that of an App destined to work with a hosted SDK and player location.  In the diagrams below, green highlighted folders and files are what makes the payload difference.  The configuration and metadata also differ to indicate whether the Web App is found within the App payload or whether it redirects to a hosted site.  Each of the key file's contents are described below.

Tizen

Tizen Payload

The config.xml here lists the App requirements and privileges, including the permitted navigation domains.  The <content> XML field directs the App to the internal index.html.

tizen payload config.xml
XML
<widget xmlns:tizen="http://tizen.org/ns/widgets"
    xmlns="http://www.w3.org/ns/widgets" id="" version="1.0.0" height="1080" width="1920" viewmodes="maximized">

    <!-- GENERAL -->
    <tizen:application id="qUBvniWGU7.otv" package="qUBvniWGU7" required_version="2.3"/>
    <name>otvPlayer</name>
    <tizen:profile name="tv-samsung"/>
    <content src="index.html"/>
    <icon src="icon.png"/>

    <!-- FEATURES -->
    <feature name="http://tizen.org/feature/screen.size.normal.1080.1920"/>

    <!-- METADATA -->
    <tizen:metadata key="http://samsung.com/tv/metadata/devel.api.version" value="2.3"/>
    <tizen:metadata key="http://samsung.com/tv/metadata/multitasking.support" value="true"/>

    <!-- PRIVILEGES -->
    <tizen:privilege name="http://developer.samsung.com/privilege/network.public"/>
    <tizen:privilege name="http://tizen.org/privilege/tv.audio"/>
    <tizen:privilege name="http://developer.samsung.com/privilege/drmplay"/>
    <tizen:privilege name="http://developer.samsung.com/privilege/productinfo"/>
    <tizen:privilege name="http://tizen.org/privilege/tv.inputdevice"/>
    <tizen:privilege name="http://tizen.org/privilege/application.launch"/>

    <!-- SETTINGS -->
    <tizen:setting screen-orientation="landscape" context-menu="enable" background-support="disable" encryption="disable" install-location="auto" hwkey-event="enable"/>

    <!-- SECURITY -->
    <access origin="*" subdomains="true"></access>
    <tizen:allow-navigation>otvplayer.nagra.com</tizen:allow-navigation>
    <access origin="https://otvplayer.nagra.com" subdomains="true"></access>

</widget>

This is supported by the index.html and any JavaScript and CSS needed to support the presentation of the entry page.  Our simple example just contains minimal text and icons with hyperlinks on to the Web Apps within the payload folders.

tizen payload index.html
XML
<!DOCTYPE html>
<html lang="en-gb" xmlns="http://www.w3.org/1999/xhtml">
	<head>
		<title>Nagra webOS Demo App</title>

		<meta charset="utf-8" />
		<meta name="viewport" content="width=device-width, initial-scale=1" />

		<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
		<link rel="stylesheet" href="styles/styles.css" />
	</head>

	<body><center>
			<img src="https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/OpenTV_Player.svg">
		<h1>Nagra CONNECT Player Demo App</h1>
		<img width="25%" src="https://download.tizen.org/misc/Tizen-Brand/01-Primary-Assets/Lockup/On-Light/01-RGB/Tizen-Lockup-On-Light-RGB.png">
		<p>
			<a href="webapp-connecttv/index.html"><img src="
				https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/Connected_TV.svg">opy-sdk-js Webapp embedded within payload of App</a>
		</p>

		<p>
			<a href="example-code/index.html">opy-sdk-js Example Code embedded within payload of App<img src="
				https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/Development_Tools.svg"></a>
		</p>

		<p>
			<a href="dasc/sample_application/index.html"><img src="https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/ENABLE.svg">das-web-client Sample Application embedded within payload of App</a>
		</p>

		<p>
			<a
				href="https://otvplayer.nagra.com/demo/html5/latest/connecttv-router/"
				>Browse to Hosted versions<img src="https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/Cloud_TV.svg"></a
			>
		</p></center>
	</body>
</html>

Tizen Hosted

The config.xml here again lists the simpler App requirements and privileges.  However, the significant difference is the <content> XML field which directs the App to the hosted URL and renders the index.html effectively redundant.

tizen hosted config.xml
XML
<widget xmlns:tizen="http://tizen.org/ns/widgets" xmlns="http://www.w3.org/ns/widgets" id="" version="1.0.0" viewmodes="maximized">
    <access origin="*" subdomains="true"></access>
    <access origin="https://otvplayer.nagra.com" subdomains="true"></access>
    <tizen:allow-navigation>otvplayer.nagra.com</tizen:allow-navigation>
    <tizen:application id="qUBvniWGU7.otv" package="qUBvniWGU7" required_version="2.3"/>
    <content src="https://otvplayer.nagra.com/demo/html5/latest/connecttv-router/"/>
    <tizen:content-security-policy>default-src *; connect-src *; media-src blob: ; img-src * data: ; style-src 'self' 'unsafe-inline' 'unsafe-eval' https://maxcdn.bootstrapcdn.com https://cdn.jsdelivr.net/; script-src 'self' 'unsafe-inline' 'unsafe-eval' https://cdnjs.cloudflare.com/; child-src blob: ; font-src data: ;</tizen:content-security-policy>
    <feature name="http://tizen.org/feature/screen.size.normal.1080.1920"/>
    <icon src="icon.png"/>
    <name>otvPlayer</name>
    <tizen:privilege name="http://tizen.org/privilege/tv.inputdevice"/>
    <tizen:privilege name="http://tizen.org/privilege/internet"/>
    <tizen:privilege name="http://tizen.org/privilege/application.launch"/>
    <tizen:privilege name="http://tizen.org/privilege/network.connection"/>
    <tizen:profile name="tv-samsung"/>
    <tizen:setting screen-orientation="landscape" context-menu="enable" background-support="disable" encryption="disable" install-location="auto" hwkey-event="disable"/>
</widget>

WebOS

webOS Payload

The appInfo.json file determines whether this is a Web or Native App via the type field and the main field directs the App to the index.html file within the App.

webOS payload appInfo.json
JS
{
    "id": "com.nagra.opydemo",
    "version": "1.0.0",
    "vendor": "Nagra Media UK Ltd",
    "type": "web",
    "main": "index.html",
    "title": "OpenTV Player",
    "icon": "icon.png",
    "iconColor": "#FFFFFF",
    "largeIcon": "largeIcon.png",
    "splashBackground": "launchBGImage.png",
    "bgImage": "launchBGImage.png",
    "uiRevision": 2
}

The index.html then provides the HTML and any JavaScript and CSS needed to support the entry page's presentation.  The simple example contains only minimal text and icons with hyperlinks to the Web Apps within the payload folders.

webOS payload index.html
XML
<!DOCTYPE html>
<html lang="en-gb" xmlns="http://www.w3.org/1999/xhtml">
	<head>
		<title>Nagra webOS Demo App</title>

		<meta charset="utf-8" />
		<meta name="viewport" content="width=device-width, initial-scale=1" />

		<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
		<link rel="stylesheet" href="styles/styles.css" />
	</head>

	<body><center>
			<img src="https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/OpenTV_Player.svg">
		<h1>Nagra CONNECT Player Demo App</h1>
		<img src="https://upload.wikimedia.org/wikipedia/commons/5/59/LG_WebOS_New.svg">
		<p>
			<a href="webapp-connecttv/index.html"><img src="
				https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/Connected_TV.svg">opy-sdk-js Webapp embedded within payload of App</a>
		</p>

		<p>
			<a href="example-code/index.html">opy-sdk-js Example Code embedded within payload of App<img src="
				https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/Development_Tools.svg"></a>
		</p>

		<p>
			<a href="dasc/sample_application/index.html"><img src="https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/ENABLE.svg">das-web-client Sample Application embedded within payload of App</a>
		</p>

		<p>
			<a
				href="https://otvplayer.nagra.com/demo/html5/latest/connecttv-router/"
				>Browse to Hosted versions<img src="https://docs.nagra.com/sites/default/files/svg_icons/icons_blue/Cloud_TV.svg"></a
			>
		</p></center>
	</body>
</html>

webOS Hosted

The appInfo.json file will be identical to the payloaded example.  The only difference for hosted is that the index.html file directs the App to the hosted URL specified.

webOS hosted index.html
XML
<!DOCTYPE html>
<html lang="en-gb">
	<head>
		<title>Loading...</title>
		<meta
			http-equiv="refresh"
			content="0;url=https://otvplayer.nagra.com/demo/html5/latest/connecttv-router/"
		/>
	</head>

	<body></body>
</html>
