TVDemo with Visual Timeline

There are two alternative approaches to using the TVDemo with the Visual Timeline.

• TVDemo embedded with the Visual Timeline running on a Smart TV you wish to analyse.

• Visual Timeline running in a browser paired with a TVDemo instance on a SmartTV.

More information about the Visual Timeline App can be found in the Visual Timeline Documentation.

Visual Timeline embedded into TVDemo

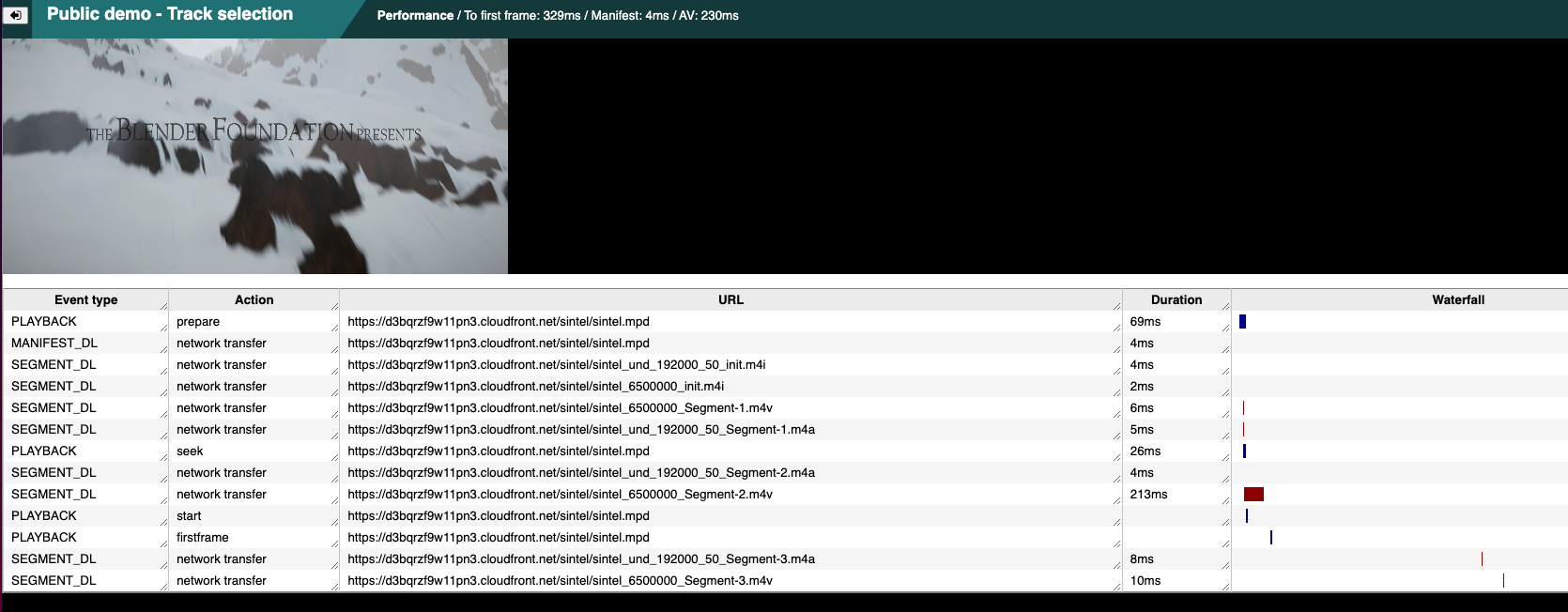

Using the TVDemo Configurability feature, you can elect to show the Visual Timeline at the same time as video playback. Once the configuration is set, the next time you play a stream, the video pane will be smaller to make way for a waterfall diagram to be rendered in the lower half of the screen.

Interacting with a paired Visual Timeline instance

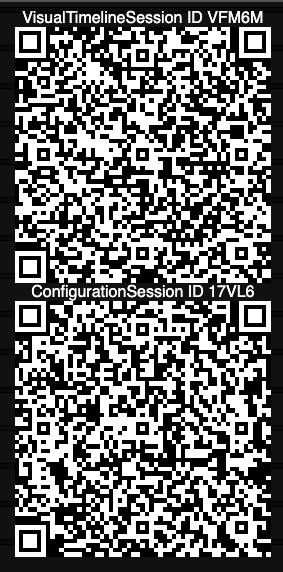

Two QR Codes are displayed.  When pairing with the Visual Timeline, the QR labelled with VisualTimelineSession ID is important.
