Migration guide for MediaLive customers

Overview

This guide provides information for customers who are migrating from MediaLive to OpenTV Video Platform (OPF).

It is not intended to be a comprehensive guide to every detail of such a migration, but to provide some important information that is useful to know.

Every migration project is different and will require some degree of custom integration work.

The following information is not intended to replace such work. Please discuss your requirements with your NAGRAVISION representative.

Client impacts

NAGRAVISION has created facades that convert client calls from MediaLive calls to OpenTV Video Platform (OPF) calls. These are transparent to the client, but it is useful to understand what is happening behind the scenes (especially if newer client devices will connect directly to OpenTV Video Platform in the future).

These are explained in the following subsections.

Auth Facade

The Auth Facade enables the following MediaLive calls to be made from existing STBs to OPF with no changes required to the client:

Pair NOCS devices

Pairs a NAGRA On-Chip System (NOCS) device with another NOCS device, allowing it to read content encrypted by the other device.

MediaLive request (to SDP)

CODE

GET https://<host>:<port>/hue-gateway/gateway/http/js/linkedStbService/pairNocsDevices

See the following sections of the MediaLive documentation:

Pairnocs request
linkedStbService.pairNocsDevices in the SDP API Documentation

Equivalent OPF request (to CAG)

N/A

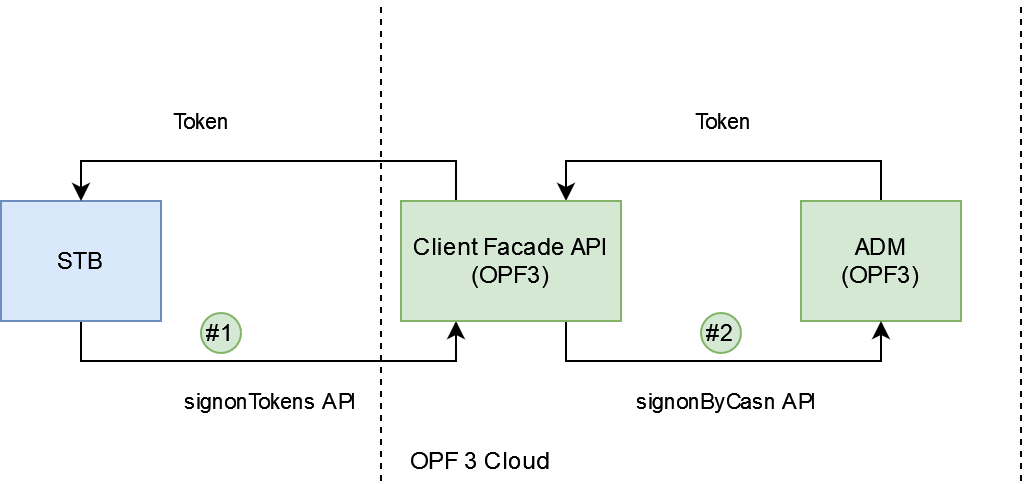

Get signon tokens

Retrieve a signon token.

MediaLive	OPF

MediaLive request (to HDM)

CODE

GET https://<host>:<port>/api/authentication/v1/signontokens

See the following sections of the MediaLive documentation:

Equivalent OPF requests (to IAS)

CODE

POST https://<host>:<port>/v3/token/actions/signOnByCasn
POST https://<host>:<port>/v3/token/actions/signOnBySmartCardId

There are two endpoints – one for devices that have a smartcard, and one for devices that do not have a smartcard.

See:

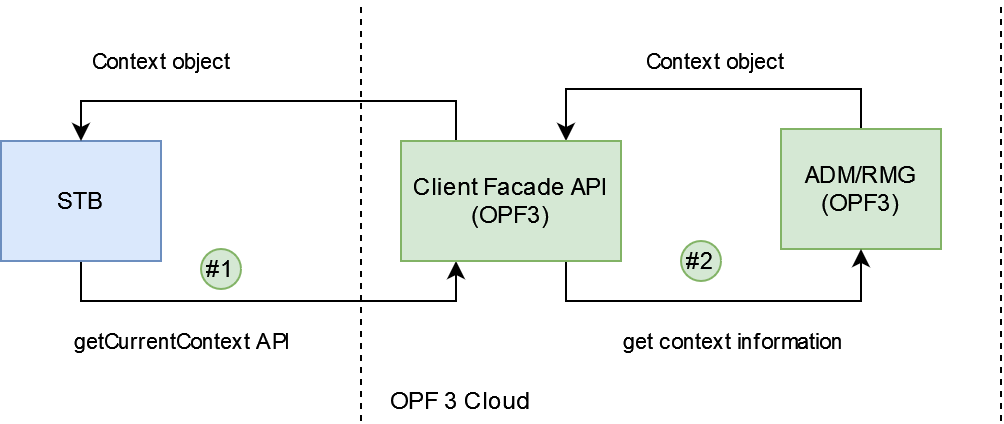

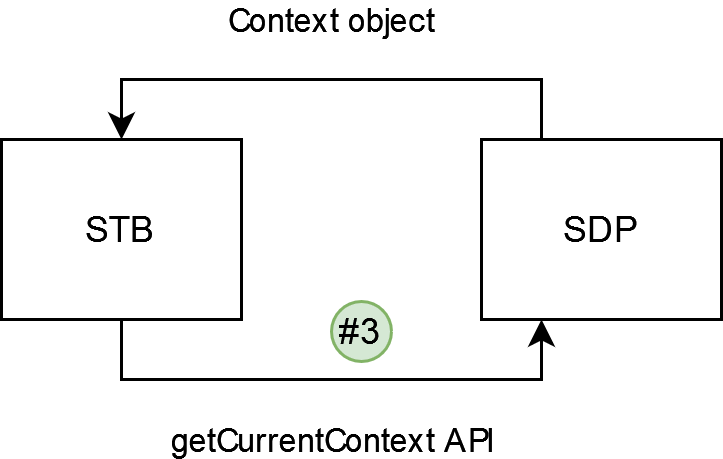

Get current context

Get information about the account, user, device, etc.

MediaLive	OPF

MediaLive request (to SDP)

CODE

GET https://<host>:<port>/hue-gateway/gateway/http/js/contextService/getCurrentContext

See the following sections of the MediaLive documentation:

Current context
contextService.getCurrentContext in the SDP API Documentation

Equivalent OPF requests (to ADM)

CODE

GET https://<host>:<port>/v1/bundled/devices/{uid}
GET https://<host>:<port>/v1/bundled/devices/casn/{caSN}

There are two endpoints – one using the device ID, one using its caSN.

See:

Account and Device Manager (ADM) API documentation

Get entitlements

This request gets all the entitlements for the account.

MediaLive request (to MDRMM)

CODE

GET https://<host>:<port>/client/getEntitlements

See the following sections of the MediaLive documentation:

Non-Direct License Acquisition - APP/MDRMM
/client/getEntitlements in the MDRMM API documentation

Equivalent OPF requests (to RMG)

CODE

GET https://<host>:<port>/rmg/v1/user/entitlements

See:

Although Auth Facade supports this endpoint, due to the varied nature of MediaLive deployments, some customisation work will be necessary.
