GetTaskStatus (interface v1.0.0)

Description

The goal of this interface is to retrieve the publish/purge task status.

Request

GetTaskStatus Xsd

Parameters

Name	Type	Description
TaskId	xs:string	ID of the publishing job returned by “LoadAsset” method Or ID of the purge job returned by “PurgeAsset” method.

Response

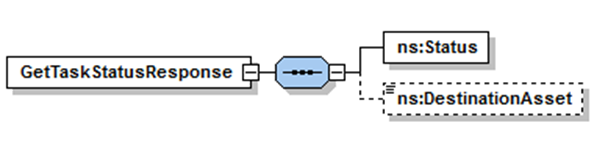

GetTaskStatusResponse Xsd

Parameters

Name

Type

Description

Status

xs:StatusType

SUCCESS: The specified publishing job is completed.
FAILED: The specified publishing job has failed.
IN_PROGRESS The specified publishing job is in progress.

DestinationAsset

xs:string

URI/Id of the destination repository from where the asset has been published.

If the task status is ‘SUCCESS’ for LoadAsset, then the ‘DestinationAsset’ must have URI/Id for the destination file or directory as part of GetTaskStatus response. In case of PurgeAsset, GetTaskStatus contains any value for ‘DestinationAsset’ as part of response then the value will be ignored.
The asset may be a single file (eg: *.ts) or a directory.
If the asset is a single file then the third- party may return DestinationAsset as part of the response which contains the complete path of the file e.g. ftp:// user:password@CDN:21/data/cdn/movie_01072015100045.ts
If the asset is a directory then the third party may return DestinationAsset as part of the response which contains the path of the as follows: ftp://user:password@CDN:21/data/cdn/

Or the third-party may return an identifier as DestinationAsset as part of response which points the asset on the CDN, e.g. movie_01072015100045.

Fault

A third-party publishing server may throw any error which occurred while getting the status of a publish/purge as a fault message. Below are a few examples for failure cases:

TaskId does not exist
Any internal error which occurred while getting the publish/purge job status

See Fault management for a fault response sample.

Sample

Request

CODE

<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Body>
        <GetTaskStatus xmlns="wfm:APUBI/v1/schemas" xmlns:ns2="wfm:/APUBI/v1/schemas">
            <TaskId>TestAssetA</TaskId>
        </GetTaskStatus>
    </soap:Body>
</soap:Envelope>

Response

Success scenario

Sample 1

CODE

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="wfm:APUBI/v1/schemas">
   <soapenv:Header/>
   <soapenv:Body>
      <ns:GetTaskStatusResponse>
          <ns:Status>IN_PROGRESS</ns: Status >
      </ns:GetTaskStatusResponse>
   </soapenv:Body>
</soapenv:Envelope>

Sample 2

CODE

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="wfm:APUBI/v1/schemas">
   <soapenv:Header/>
   <soapenv:Body>
      <ns:GetTaskStatusResponse>
          <ns:Status>SUCCESS</ns: Status >
      </ns:GetTaskStatusResponse>
   </soapenv:Body>
</soapenv:Envelope>

Failure scenario

CODE

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="wfm:APUBI/v1/schemas">
    <soapenv:Header/>
    <soapenv:Body>
        <soapenv:Fault>
            <faultcode>env:Server</faultcode>
            <faultstring>Task Id does not exist </faultstring>
            <detail>
                <ns2:ExceptionWS xmlns:ns2="wfm:APUBI/v1/schemas">
                    <message>Task Id does not exist</message>
                  </ns2:ExceptionWS>
            </detail>
        </soapenv:Fault>
    </soapenv:Body>
</soapenv:Envelope>

The NAGRA Workflow Manager (WFM) expects the success response to be in the following format with a 200 OK HTTP status code. Fault messages should be returned with an HTTP error response code, for example, 400, 500, etc.
