PurgeAsset (interface v1.0.0)

Description

The goal of this interface is to purge an asset on the destination CDN. As part of purge workflow, the CWM constructs a request message containing “DestinationAsset” and “MetaData”. Response message consists of a unique “TaskId” of the operation.

Request

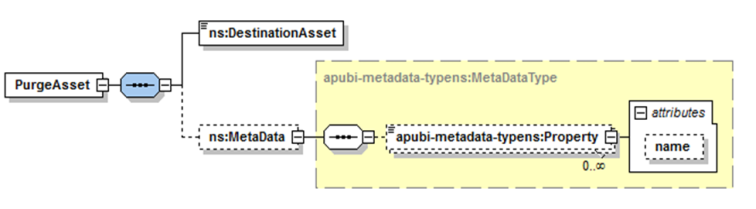

PurgeAsset Xsd

Parameters

Name

Type

Description

DestinationAsset

xs:string

URI/Id of the destination repository from where the asset will be purged.
The asset may be a single file (eg: *.ts) or a directory.

If the asset is a single file then the DestinationAsset contains the complete path of the file e.g.
ftp:// user:password@CDN:21/data/cdn/movie_01072015102030
If the asset is a directory then the DestinationAsset contains the path of the as follows:
ftp://user:password@CDN:21/data/cdn/

Or if the DestinationAsset is an identifier which points the asset on the CDN, e.g. movie_01072015102030

MetaData

xs:MetaDataType

See MetaData details.

Response

PurgeAssetResponse Xsd

Parameters

Name	Type	Description
TaskId	xs:string	ID of the publishing job as created by the publishing system. The format of the “TaskId” parameter is dependent on the publishing system.

Fault

A third-party publishing server may throw any error which occurred during the execution of purge job as a fault message. Below are a few examples for failure cases:

Destination asset URI not accessible
Not able to delete Destination asset
Any internal error which occurred during purge job execution

See Fault management for a fault response sample.

Samples

Use case

Request

For a single file

CODE

<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Body>
        <PurgeAsset xmlns="wfm:APUBI/v1/schemas" xmlns:ns2="wfm:/APUBI/v1/schemas">
            <DestinationAsset>Test_Encryption_GenericAssetContent_01/TestAsset_1080p.mp4
</DestinationAsset>
        </PurgeAsset>
    </soap:Body>
</soap:Envelope>

For a directory

CODE

<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Body>
        <PurgeAsset xmlns="wfm:APUBI/v1/schemas" xmlns:ns2="wfm:/APUBI/v1/schemas">
            <DestinationAsset>Test_Encryption_GenericAssetContent_01/ </DestinationAsset>
        </PurgeAsset>
    </soap:Body>
</soap:Envelope>

Response

Success scenario

CODE

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="wfm:APUBI/v1/schemas">
    <soapenv:Header/>
    <soapenv:Body>
        <ns:PurgeAssetResponse>
            <ns:TaskId>110F8400-E29B-11D4-A716-446655440</ns:TaskId>
        </ns:PurgeAssetResponse>
    </soapenv:Body>
</soapenv:Envelope>

Failure scenario

CODE

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns="wfm:APUBI/v1/schemas">
    <soapenv:Header/>
    <soapenv:Body>
        <soapenv:Fault>
            <faultcode>env:Server</faultcode>
            <faultstring>Destination asset does not exist </faultstring>
            <detail>
                <ns2:ExceptionWS xmlns:ns2="wfm:APUBI/v1/schemas">
                    <message> Destination asset does not exist </message>
                </ns2:ExceptionWS>
            </detail>
        </soapenv:Fault>
    </soapenv:Body>
</soapenv:Envelope>

The NAGRA Workflow Manager (WFM) expects the success response to be in the following format with a 200 OK HTTP status code. Fault messages should be returned with an HTTP error response code, for example, 400, 500, etc.
